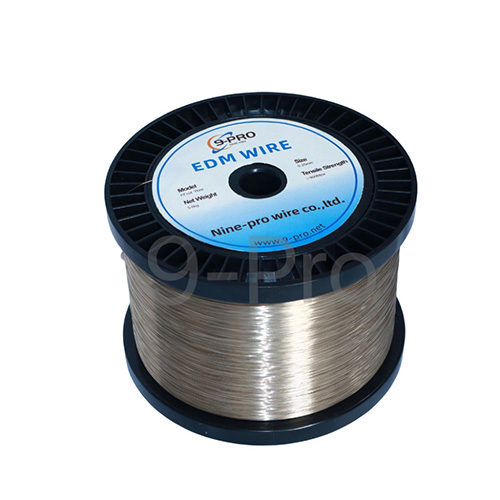

PZcut Wire Series
Product Feature
- High-performance coated EDM wire.
- Good processing precision and speed
- Suitable for auto-threading machines.
- Cutting speed 15%higher than brass wire.
Message: Have a question about our products? Submit your inquiry now and let our experts provide you with the answers you need!
- Product Series
- PZcut

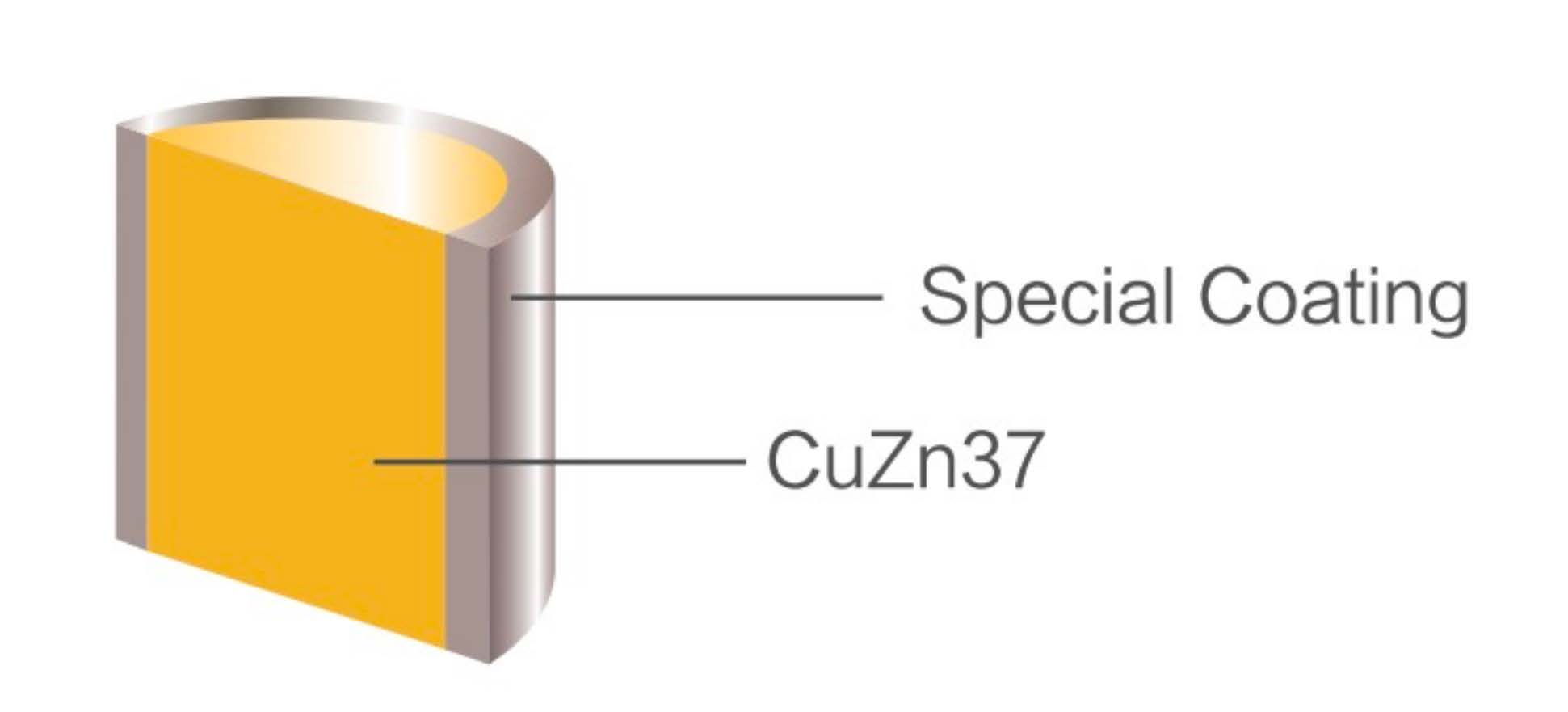

- Material
- CuZn37
- Surface
- Special Coating
- Tensile Strength
- ≥900MPa
- Conductivity
- ≥20%IACS
- Color
- Grey Yellow
PZcut wire is high-precision galvanized wire.
Excellent processing accuracy and surface quality, very suitable for customers who focus on cutting parts with high surface precision.
High straightness, suitable for automatic tapping machines.
The surface of the wire is extremely clean and smooth, much higher than traditional hard brass wire, but the speed will also remain higher than traditional wire.
The investment in price is small, but the parts shipped from the factory are significantly increased.
Regarding delivery time:
The 5kg shaft is in stock and can be shipped immediately after ordering. The delivery time for 8kg and 10kg axles is 30 days, and the delivery time for other sizes is 45 days, please be informed!
- Φ[mm]
- 0.10
- 0.15
- 0.20
- 0.25
- 0.30
- P3
- P5
- P10
- P15
- DIN125
- DIN160
- DIN200
- DIN250
| Spool Type | Material | Outer Height D1(mm) | Inner Height D2(mm) | Inner Diameter d(mm) | Outer Width W1(mm) | Inner Width W2(mm) | Wire Weight | Weight tolerance(kg) |
| P3 | ABS(PS) | 130 | 80 | 20 | 110 | 90 | 3 | ±0.05 |
| P5 | ABS(PS) | 160 | 90 | 20 | 114 | 90 | 5 | ±0.05 |
| P10 | ABS | 200 | 90 | 25 | 135 | 110 | 10 | ±0.05 |
| P15 | ABS | 250 | 110 | 33 | 140 | 110 | 20 | ±0.05 |
| DIN125 | ABS | 125 | 80 | 20 | 125 | 100 | 3/3.5 | ±0.05 |
| DIN160 | ABS | 160 | 100 | 22 | 160 | 128 | 7/8 | ±0.05 |
| DIN200 | ABS | 200 | 124 | 22 | 250 | 160 | 15/16 | ±0.05 |
| DIN250 | ABS | 250 | 160 | 23 | 200 | 160 | 25 | ±0.05 |
Spool Drawing
