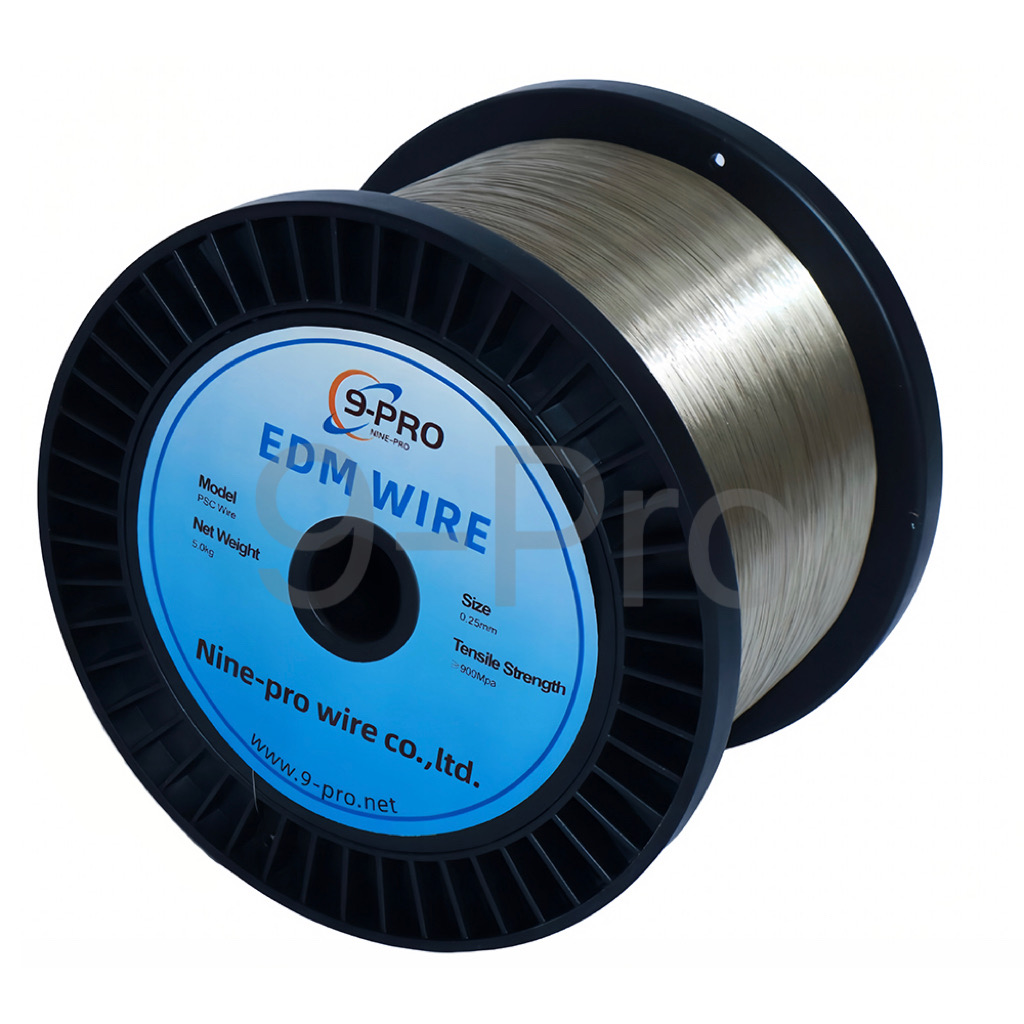

PSC Wire Series
Product Feature
- High-performance coated EDM wire.
- Good processing precision and speed
- Suitable for auto-threading machines.
- Cutting speed 15%higher than brass wire.
Message: Ready to take the next step? Complete our inquiry form and a member of our team will contact you shortly to discuss your needs.
- Product Series
- PSC
- Material
- CuZn37
- Surface
- Special Coating
- Tensile Strength
- ≥900MPa
- Conductivity
- ≥20%IACS
- Color
- Grey Yellow
PSC wire is a high performance coated EDM wire.
Good processing accuracy and speed ensure the machine's comprehensive demand for EDM machine.
Suitable for automatic threading machines.
The cutting speed is 15% higher than that of brass wire, the surface treatment is smooth, and it is the best choice with high cost performance.
Regarding delivery time:
The 5kg shaft is in stock and can be shipped immediately after ordering. The delivery time for 8kg and 10kg axles is 30 days, and the delivery time for other sizes is 45 days, please be informed!
- Φ[mm]
- 0.10
- 0.15
- 0.20
- 0.25
- 0.30
- P3
- P5
- P10
- P15
- DIN125
- DIN160
- DIN200
- DIN250
| Spool Type | Material | Outer Height D1(mm) | Inner Height D2(mm) | Inner Diameter d(mm) | Outer Width W1(mm) | Inner Width W2(mm) | Wire Weight | Weight tolerance(kg) |
| P3 | ABS(PS) | 130 | 80 | 20 | 110 | 90 | 3 | ±0.05 |
| P5 | ABS(PS) | 160 | 90 | 20 | 114 | 90 | 5 | ±0.05 |
| P10 | ABS | 200 | 90 | 25 | 135 | 110 | 10 | ±0.05 |
| P15 | ABS | 250 | 110 | 33 | 140 | 110 | 20 | ±0.05 |
| DIN125 | ABS | 125 | 80 | 20 | 125 | 100 | 3/3.5 | ±0.05 |
| DIN160 | ABS | 160 | 100 | 22 | 160 | 128 | 7/8 | ±0.05 |
| DIN200 | ABS | 200 | 124 | 22 | 250 | 160 | 15/16 | ±0.05 |
| DIN250 | ABS | 250 | 160 | 23 | 200 | 160 | 25 | ±0.05 |

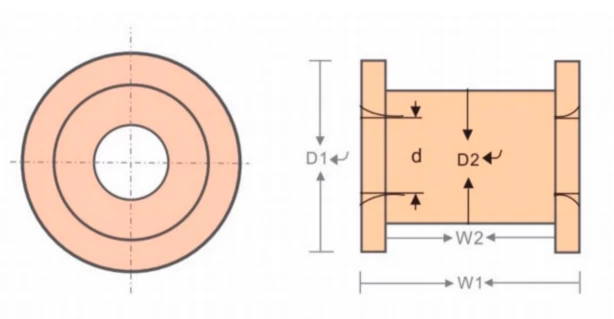

Spool Drawing
