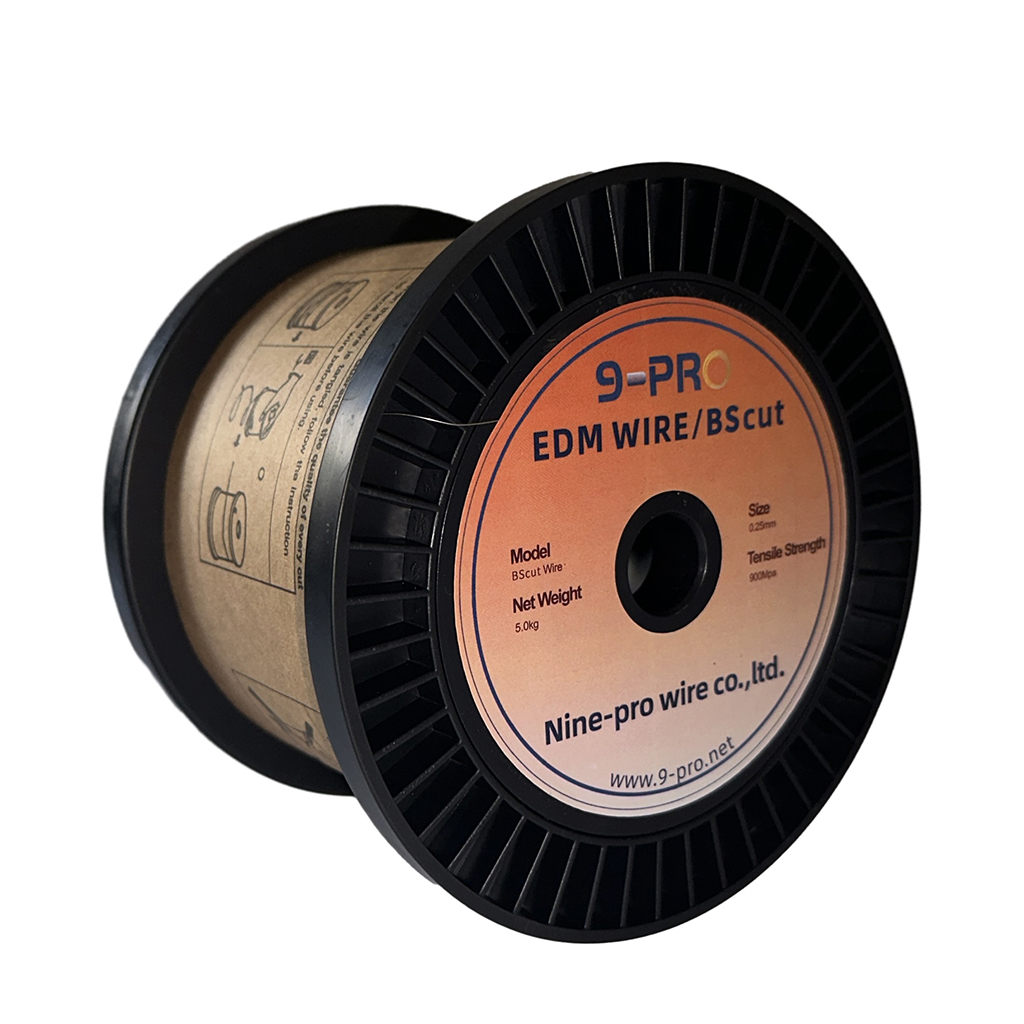

BScut Wire Series
Product Feature
- Particularly suitable for AgieCharmilles machines.
- Provide good accuracy and surface finish.
- Excellent automatic threading performance.
- The cutting speed is faster than brass wire.
Message: Don't wait any longer to find the perfect solution. Fill out our inquiry form now and receive a tailored response from our specialists!
- Product Series
- BScut

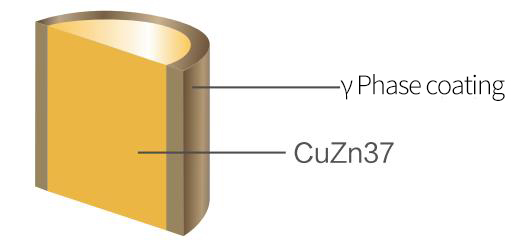

- Material
- CuZn37
- Surface
- γ Phase coating
- Tensile Strength
- 900MPa
- Conductivity
- 20%IACS
- Threading method
- Automatic threading
The optimal version of BScut wire is a combination of many advantages of wires, its performance is far better than the typical copper/zinc =63%/37% high-speed wire. Not only does it cut faster than regular wire, but it also burns cleaner, which also saves you money on other EDM consumables like EDM filters and EDM guides.
Suitable for most machines where productivity is a priority. Especially suitable for the machines of Agie Charmilles.
It is an excellent all-round wire that supports higher precision machining, thus cost-effectively reducing operations from precision cutting to roughing.
The automatic threading effect is excellent. The wire surface is clean and smooth. More importantly, its cutting speed is increased by 25% to 30%. It is the best choice for pursuing high performance.
If you are looking for a wire that greatly increases efficiency without raising the cost too much, this is the wire for you.
About delivery time:
5 kg of shafts are in stock and can be shipped immediately upon order. Please note that the delivery time of 8kg and 10kg axles is 30 days, and the delivery time of other sizes is 45 days.
- Φ[mm]
- 0.10
- 0.15
- 0.20
- 0.25
- 0.30
- P3
- P5
- P10
- P15
- DIN125
- DIN160
- DIN200
- DIN250
| Spool Type | Material | Outer Height D1(mm) | Inner Height D2(mm) | Inner Diameter d(mm) | Outer Width W1(mm) | Inner Width W2(mm) | Wire Weight | Weight tolerance(kg) |
| P3 | ABS(PS) | 130 | 80 | 20 | 110 | 90 | 3 | ±0.05 |
| P5 | ABS(PS) | 160 | 90 | 20 | 114 | 90 | 5 | ±0.05 |
| P10 | ABS | 200 | 90 | 25 | 135 | 110 | 10 | ±0.05 |
| P15 | ABS | 250 | 110 | 33 | 140 | 110 | 20 | ±0.05 |
| DIN125 | ABS | 125 | 80 | 20 | 125 | 100 | 3/3.5 | ±0.05 |
| DIN160 | ABS | 160 | 100 | 22 | 160 | 128 | 7/8 | ±0.05 |
| DIN200 | ABS | 200 | 124 | 22 | 250 | 160 | 15/16 | ±0.05 |
| DIN250 | ABS | 250 | 160 | 23 | 200 | 160 | 25 | ±0.05 |
Spool Drawing
